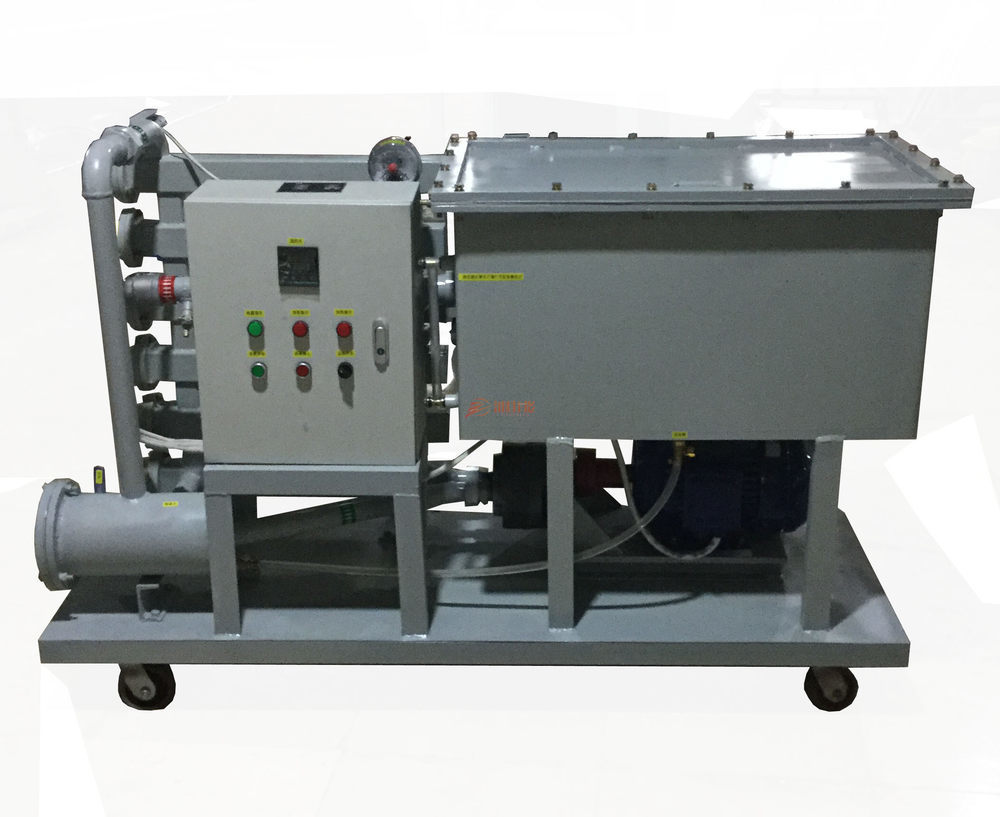

LY series plate and frame pressure oil filter


Plate and frame oil filter is a kind of mechanical equipment that can filter solid impurities and moisture in oil and improve oil quality. The plate and frame oil filter is composed of filter bed, oil pump, coarse filter and other components. Filter paper or filter cloth is lined between the filter plate and the filter frame as the filter medium. With the pressure of the pressing device, the filter plate and the filter frame are fixed to form a separate filter chamber. The filter paper or filter cloth pressed between the filter plate and the filter frame plays a filtering role. The plate and frame oil filter has the advantages of simple structure, easy operation and low operating cost. The plate and frame oil filter is specially designed for power plants, power stations, industrial and mining enterprises, lubricating oil warehouses, tractor stations, petroleum, chemical, metallurgy, national defense units, etc. It is mainly used to filter the water and impurities in transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil, etc. It can also use stainless steel materials to filter vegetable oil.



Purpose

It is used to filter water and impurities in transformer oil, turbine oil, engine oil, diesel oil, kerosene, aviation hydraulic oil and other oils, and stainless steel materials can also be used to filter vegetable oil



Plate frame structure

The machine is composed of filter bed, oil pump, coarse filter and other components. Filter paper or filter cloth is lined between the filter plate and the filter frame as the filter medium. With the pressure of the pressing device, the filter plate and the filter frame are fixed to form a separate filter chamber. The filter paper or filter cloth pressed between the filter plate and the filter frame plays a filtering role



Technical Features

The utility model has the advantages of simple structure, simple operation, low operation cost, no site restriction, etc



User selectable complete machine structure

1. Cast iron plate frame and engineering plastic plate frame can be selected

2. Optional high-temperature water-cooling configuration, used to filter high-temperature hot oil

3. High pressure oil pump can be selected for high lift transmission filtration



Table of Technical Parameters

Model

Units

LY-30

LY-50

LY-100

LY-125

LY-150

LY-200

LY-300

Oil filtering capacity

L/min

>30

>50

>100

>125

>150

>200

>300

Filtering area

≥ ㎡

0.87

1.04

1.98

2.2

2.8

4

5.5

Frame size

mm

195*195

295*295 & nbsp; (or 395 * 395)

Pressing method

Manual screw pressing (or electric pressing)

Motor

Power

1.1

1.5

2.2

4

5.5

Revolutions

960r/min

Diameter of oil inlet pipe

32

40

50

60

Diameter of oil outlet pipe

32

40

50

60

Shape
Dimensions

Long

mm

800

900

1000

1100

1200

Width

mm

430

560

560 or 660

High

mm

& nbsp;& nbsp;& nbsp;& nbsp;& nbsp;& nbsp; 720

840

9000

Filter paper size

mm

195*195

295*295

Weight

kg

120

220

240

280

360

460

Precision

µ m

1 ~ 10

Cleanliness after oil filtration

level

≤ 8(NAS1638)

※ The overall dimensions and quality of the equipment are for reference only. With the continuous development of the product, the real object shall prevail
