TY series turbine oil special oil filter
Enterprises that use turbine oil for firepower, hydroelectric generating sets, nuclear power plants, industrial steam turbines, etc.
Category:

Hotline:
Use
1. Enterprises that use turbine oil for firepower, hydroelectric generating sets, nuclear power plants, industrial steam turbines, etc.
2, used to treat unqualified turbine oil, especially suitable for heavily emulsified turbine oil. The oil index is required to meet the requirements of GB/T7596-2000 Turbine Oil Quality Standards for Operation.
3. It is used to purify the oil that has been steamed, leaked, aged, acidified, foamed and emulsified. The turbine oil that makes the turbid emulsification is clear and transparent.
4, used for online filtration, demulsification, dehydration, acid removal, impurity removal, to ensure the unit adjustment, lubrication system normal work, extend the maintenance cycle of the unit.
Technical characteristics
1. It adopts large-area three-dimensional flashing technology, which has strong demulsification and water removal ability.
2. It adopts the latest technology at home and abroad, integrating gravity method, vaporization method, coalescence method, vacuum separation, mechanical filtration and other advantages.
3, multi-stage precision filtration, step-by-step encryption, large amount of dirt, can effectively remove mechanical impurities in oil.
4. The heating system adopts the optimized piping design to ensure uniform heating and stable oil temperature.
5, advanced automatic constant temperature, automatic liquid level control, automatic defoaming control, automatic pressure protection, to ensure high-performance operation of equipment.
6, online filter oil, can be run unattended, the operating status is indicated by the indicator light.
7. The chain safety protection of the whole machine, the oil inlet and the heating system are interlocked to avoid the adverse effects caused by misoperation.
User selectable configuration
1. According to the user's needs, optional PLC intelligent control, touch screen operation, and dynamic display.
2. The main power components, filter equipment and electrical components can be selected with high quality imported products to improve the performance of the equipment.
3. Optional flow meter with accumulator function.
4, according to the use of the site safety environment, optional BT or CT grade explosion-proof.
User selectable machine structure
1. The structure of the whole machine can be made into mobile and fixed.
2, can be made into a fully enclosed, concealed, canvas, open type.
3. The color of the device can be arbitrarily selected as needed.
Technical parameter
parameter name | unit | TY-10 | TY-30 | TY-50 | TY-100 | TY-150 | TY-200 | TY-300 | |
flow | L/min | 10 | 30 | 50 | 100 | 150 | 200 | 300 | |
Working vacuum | Mpa | -0.06 ~ -0.095 | |||||||
Operating temperature | ℃ | 20-80 | |||||||
Water content in oil | PPM | ≦50(GB/T7600) | |||||||
Cleanliness | NAS | ≦6 | |||||||
Emulsification value | min | ≦15(GB/F7305) | |||||||
heating power | KW | 12 | 24 | 30 | 45 | 90 | 130 | 180 | |
Total power | KW | 14 | 27 | 35 | 50 | 95 | 142 | 191 | |
Import and export pipe diameter | mm | 25 | 25 | 32 | 40 | 50 | 50 | 65 | |
equipment weight | Kg | 400 | 500 | 600 | 750 | 850 | 1050 | 1200 | |
Dimensions | long | mm | 1200 | 1250 | 1300 | 1400 | 1500 | 1600 | 1800 |
width | mm | 750 | 1000 | 1150 | 1250 | 1300 | 1450 | 1500 | |
high | mm | 1450 | 1550 | 1600 | 1700 | 1800 | 1900 | 2100 |
※ The equipment dimensions and equipment quality are for reference only. As the product continues to develop, the actual product shall prevail.
consultation hotline:0086-13607489711( WeChat has the same number)
Turbine oil vacuum oil filter working principle

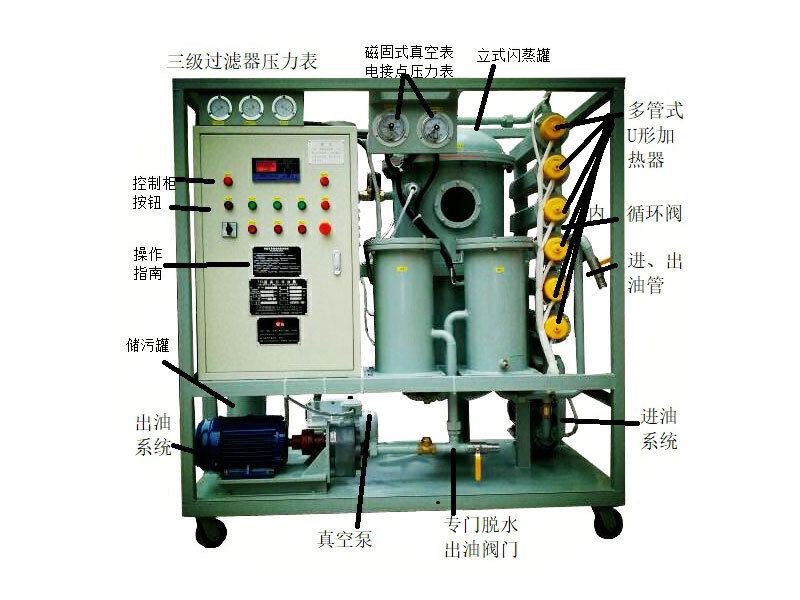

Vacuum oil purifier is designed according to the different boiling point of water and oil. It consists of vacuum heating tank, fine filter, condenser, prefilter, water tank, vacuum pump, oil drain pump and electrical cabinet. The vacuum pump draws out the air in the vacuum tank to form a vacuum. Under the action of atmospheric pressure, the external oil enters the primary filter through the inlet pipe, removes the larger particles, and then enters the heating tank, and the oil is heated to 40~75 °C. Automatic oil bleed valve, which automatically controls the amount of oil entering and leaving the vacuum tank. The heated oil is rapidly swirled by the spray wings to separate the oil into a semi-mist, and the water in the oil is rapidly evaporated into water vapor and continuously sucked into the condenser by the vacuum pump. The water vapor entering the condenser is cooled and then returned to the original water for release. The oil in the vacuum heating tank is discharged into the fine filter by the oil discharge pump, and the particulate impurities are filtered out through the oil filter paper or the filter element, thereby completing the vacuum oil filter quickly. Remove the impurities, water and gas from the oil, so that the clean oil is discharged from the oil outlet.
