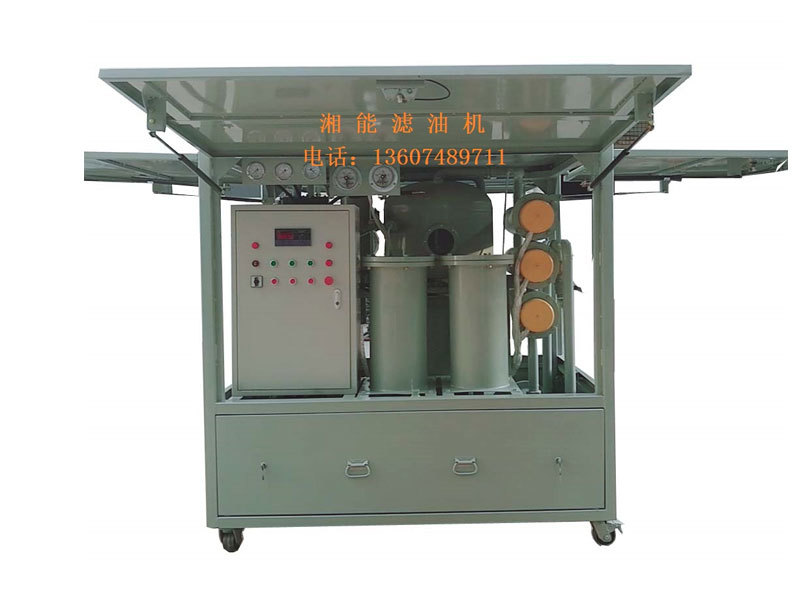

ZYD series double stage vacuum oil filter
It is suitable for on-site maintenance of large-scale substation transformers above 110KV and deep purification treatment of high-grade new oil, imported oil, transformer oil, ultra-high pressure transformer oil and so on.
Hotline:
use
1. It is suitable for on-site maintenance of large-scale substation transformers above 110KV and deep purification treatment of high-grade new oil, imported oil, transformer oil, ultra-high pressure transformer oil and so on.
2. It is used for maintenance, installation and use of power systems and substations in power plants, power stations, power companies, substation industries, metallurgy, petrochemical, machinery, transportation, railways and other industries.
3. It can also be used for vacuum oil filling, vacuum drying and hot oil circulation of transformers.
4. It is more advantageous to use this series of models in high altitude areas.
Technical characteristics
1, two-stage high vacuum, large pumping speed, advanced degassing and degassing three-dimensional flashing technology, can quickly and efficiently remove harmful components such as moisture, impurities and hydrocarbons in oil.
2. High efficiency improves the flash point and compressive strength of the insulating oil.
3, can meet the installation or maintenance site on the transformer body vacuum and vacuum oil injection.
4, multi-stage precision filtration step by step encryption, can effectively remove mechanical impurities in the oil.
5, automatic constant temperature control, automatic liquid level control, automatic defoaming, automatic pressure protection.
6, online filter oil, can be run unattended, the operating status is indicated by the indicator light.
7. The humanized design of the machine, low noise, easy operation, long maintenance interval, low energy consumption and running cost.
8. The whole machine is equipped with interlocking safety protection, and the oil discharge system, vacuum system and heating system are interlocked to avoid misoperation.
User selectable configuration
1. According to the user's needs, optional PLC intelligent control, touch screen operation, and dynamic display.
2. The main power components, filter equipment and electrical components can be selected with high quality imported products to improve the performance of the equipment.
3. Optional online moisture detector.
4. Optional inverter, you can select the flow according to your needs.
5. Optional flow meter with accumulative function.
6. Optional external connection to the transformer evacuation system.
User selectable machine structure
1. The whole structure can be made into mobile, fixed, (half or double).
2, can be made into a fully enclosed, concealed, canvas canopy.
3. You can choose the color of the device as needed.
technical parameter
※ The external dimensions and equipment quality of the equipment are for reference only. As the product continues to develop, the actual product shall prevail.
