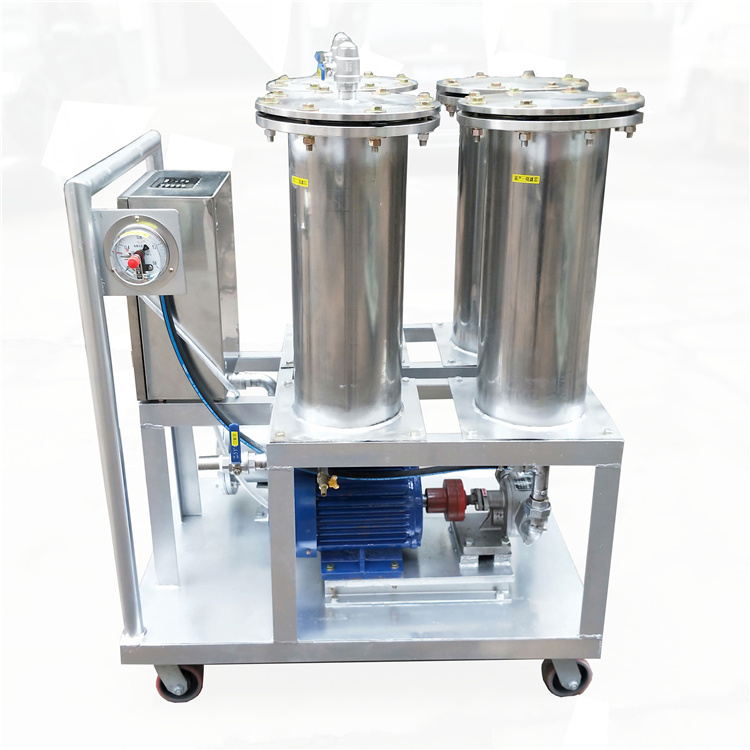

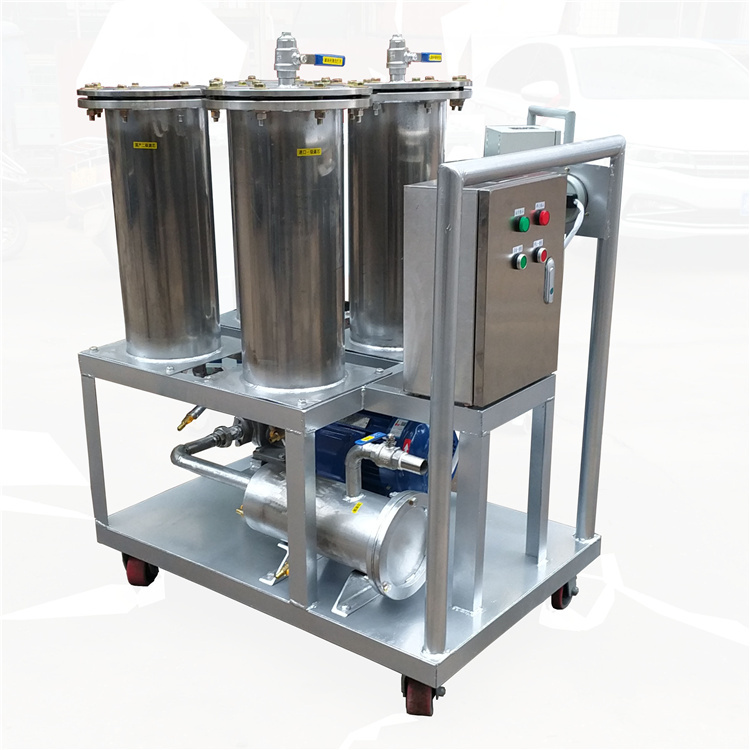

JL series portable filter fuel dispenser


Features: Based on the manual oil filter, the equipment is equipped with a stepless transmission, which can be changed to explosion-proof type according to customer requirements



Features:The stepless transmission is added to the manual oil filter, which can be changed to explosion-proof type according to customer requirements



Purpose

1. It is used to filter impurities while conveying liquid media such as mechanical oil, hydraulic oil, turbine oil, compressor oil, insulating oil, water glycol, diesel oil, gasoline oil, etc

2. It can add oil and pump oil to the lubricating system with long distance and high lift, and can also filter impurities online

3. It is used in power plant, power station, power supply bureau, oil depot, metallurgy, chemical industry, railway, machinery, aviation and other industries



Technical Features

1. Filtration of solid pollutants is fast, with high precision, and no oil filter paper is used

2. Light and flexible, easy to move

3. Filtering precision (1-20um) and filtering stages (1-6 levels) can be freely selected according to needs (the standard is 3-level filtering with 5um precision)

4. There are many specifications to choose from



User Optional Configuration

1. Imported brands can be selected for motors, electrical appliances and oil pumps as required

2. Flowmeters can be installed according to user requirements

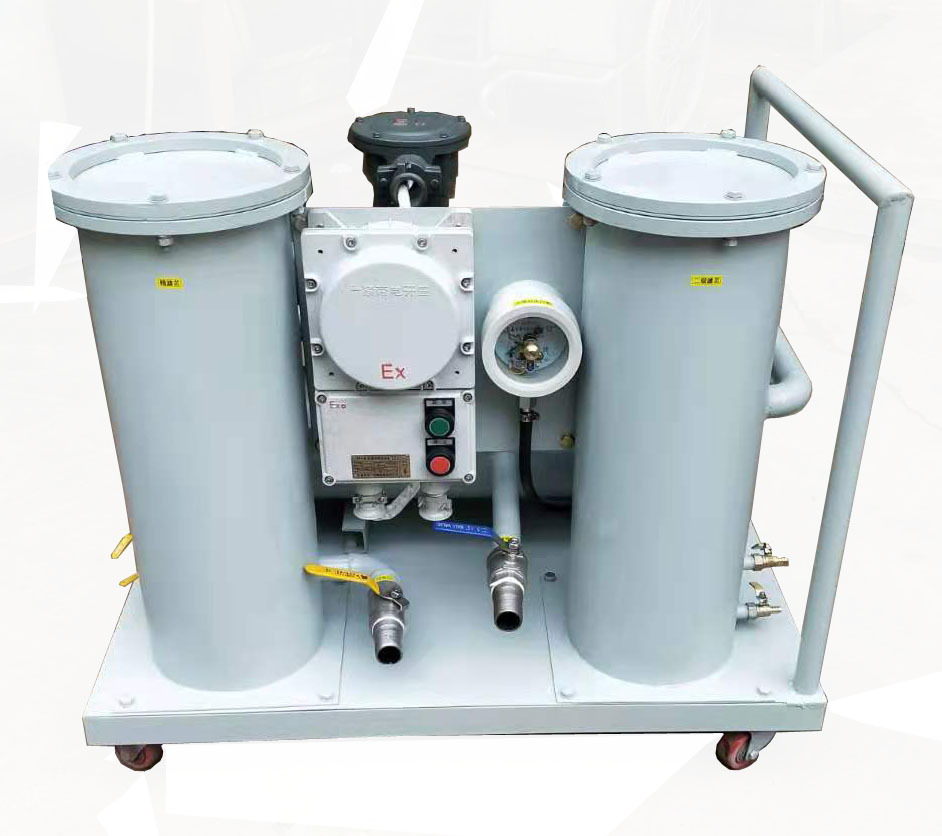

3. Explosion proof products can be customized according to the on-site environment

4. The electric cabinet and heating pipe can be assembled as required



Technical parameters

Parameter name

Units

JL-32

JL-50

JL-100

JL-150

JL-200

JL-300

Traffic

L/H

1800

3000

6000

9000

12000

18000

Power

V

380V/50Hz (or as required by users)

Motor power

KW

0.75

1.1

1.5

2.2

4

5.5

Inlet and outlet pipe diameters

mm

32

32

40

50

50

60

Equipment weight

KG

120

150

220

260

320

460

Length * Width * Height

mmm

800*350*700

850*400*850

900*750*1000

900*850*1000

Filtering precision

µ m

1~10 (or as required)

Filter stage

level

Level 3 (or as required)

Cleanliness

level

≤ 6(NAS1638)
