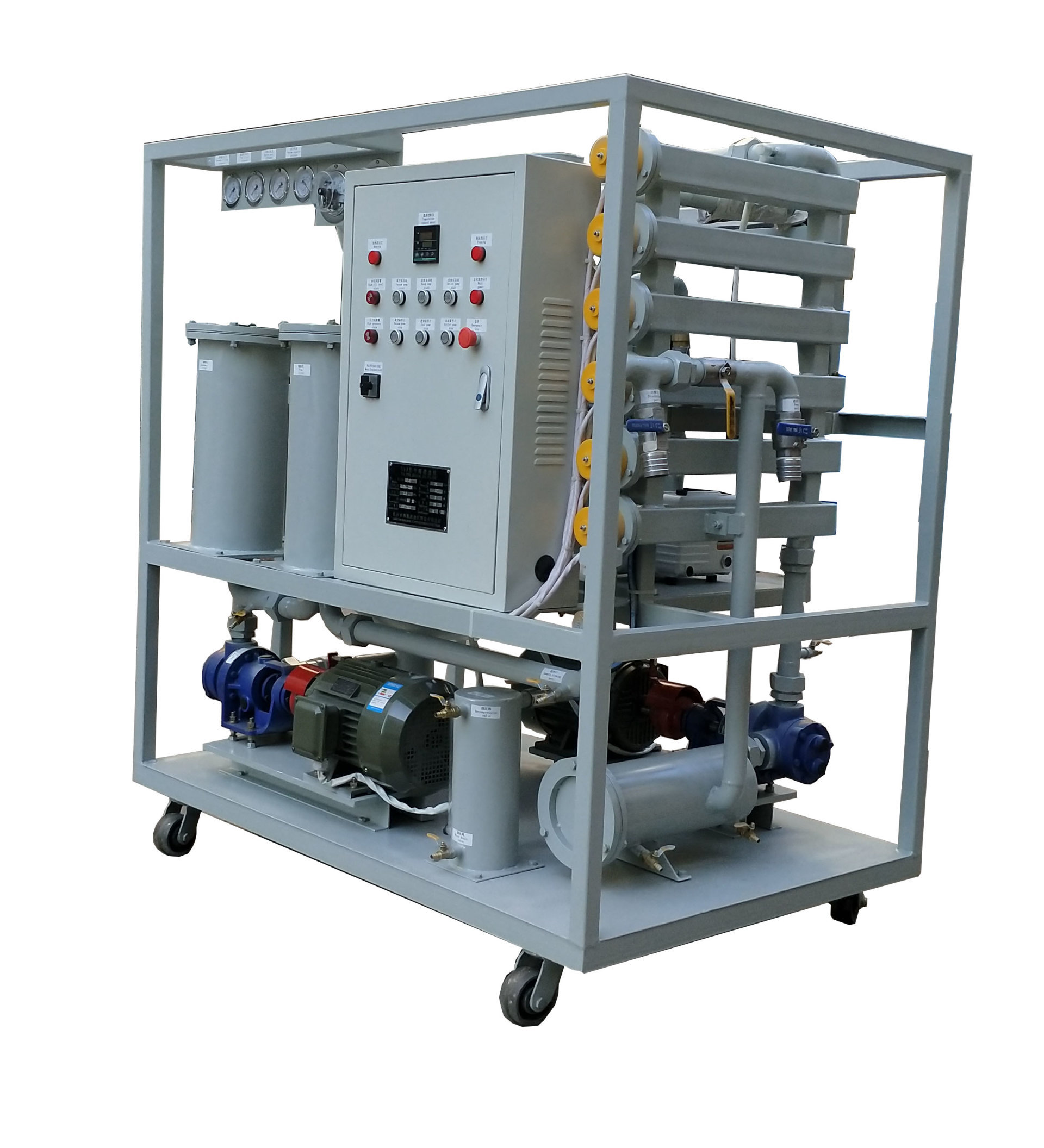

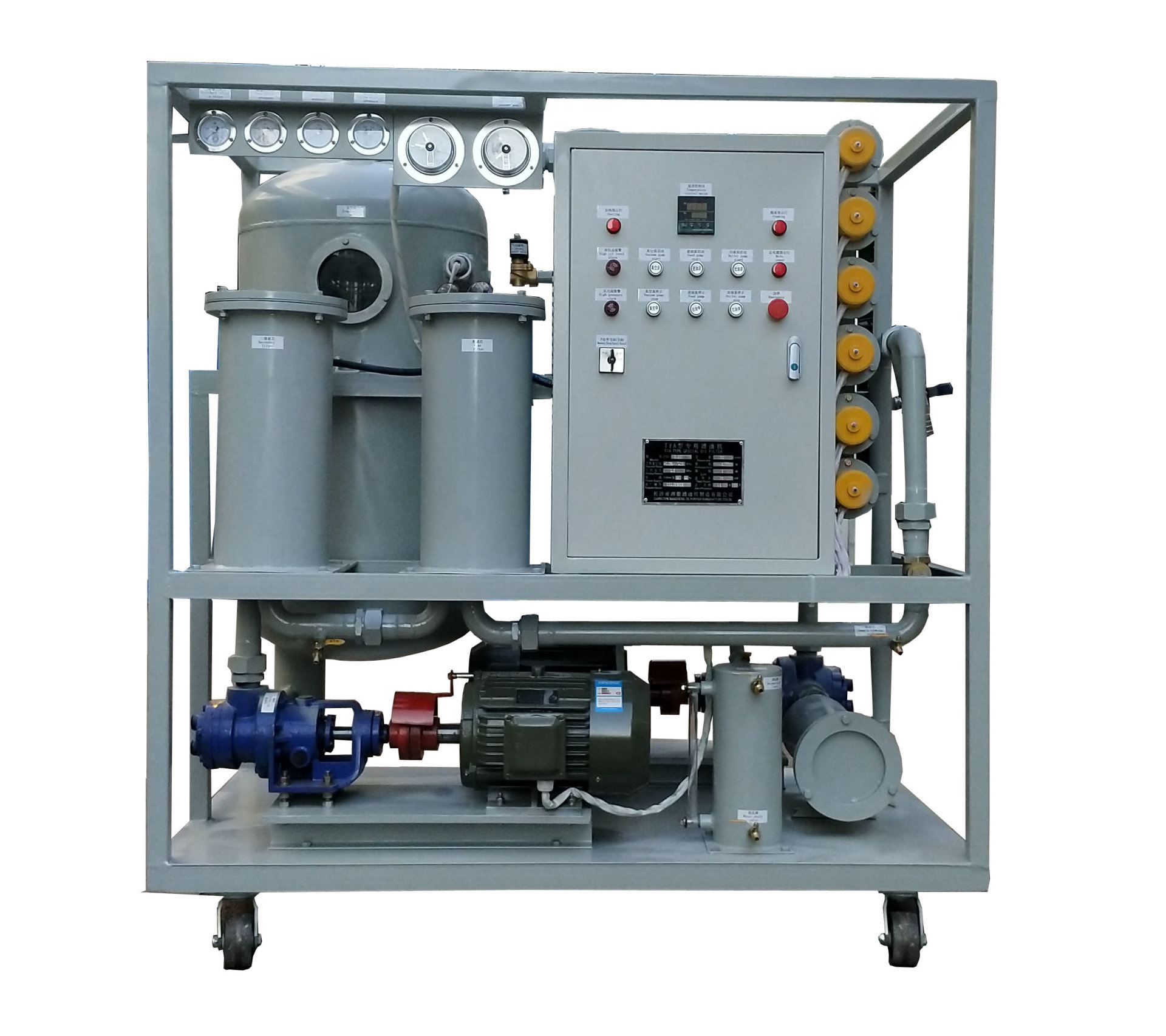

TYA-G series high viscosity lubricating oil vacuum filter


TYA-G series high viscosity lubricating oil vacuum filter is used in machinery, metallurgy, mining, petroleum, chemical industry, electric power, transportation, railway and other fields to purify various high viscosity lubricating oils. It can quickly remove water, impurities, volatile matter (such as ammonia) and other harmful components in the oil, improve the quality of the oil, and restore its performance. This machine can run online, and can also handle the oil separately by preheating the mailbox to meet the user's requirements for oil processing.



Product model:TYA-G10-300



I. Purpose

TYA-G series high viscosity lubricating oil vacuum filter is used in machinery, metallurgy, mining, petroleum, chemical industry, electric power, transportation, railway and other fields to purify various high viscosity lubricating oils. It can quickly remove water, impurities, volatile matter (such as ammonia) and other harmful components in the oil, improve the quality of the oil, and restore its performance. This machine can run online, and can also handle the oil separately by preheating the mailbox to meet the user's requirements for oil processing



II. Features

1. A special oil pump is used to transport oil

2. It has strong ability to filter impurities. Large area and deep precision filter material can remove fine particles in oil, and permanent magnetic filter is equipped to filter out fine impurities containing iron

3. The unique degassing and dehydration system adopts three-dimensional evaporation technology and multi-level oil-water separation technology to quickly separate water and gas from oil

4. The heating system adopts optimized pipeline design to ensure uniform heating and stable oil temperature

5. Advanced automatic constant temperature control, automatic liquid level control, automatic defoaming control, automatic pressure protection and excellent configuration ensure the high-performance operation of the equipment

6. On line oil filtering, unmanned operation is available, and the operation status is displayed by the indicator light

7. This machine has humanized design, low noise, simple operation, long service life, and greatly reduces the cost

8. It is equipped with filter element replacement device and filter element saturation shutdown device

9. It is equipped with leakage and overload shutdown devices to protect the motor

10. It is equipped with phase sequence and phase loss protection functions and safety control for accidental shutdown



User Optional Configuration

1. PLC intelligent control, touch screen operation and dynamic display can be selected according to the needs of users

2. The main power components, filter equipment and electrical components can be imported products of high quality to improve the performance of the equipment

3. Optional flowmeter with accumulation function

4. Online moisture detector is optional

5. According to the safety environment of the site, BT or CT explosion-proof can be selected



User selectable complete machine structure

1. The whole machine structure can be made into mobile and fixed type

2. It can be made into fully closed type, canopy type, canvas tent, and open type

3. The color of the equipment can be selected as required



Technical parameters

Project

Parameter name

Units

TYA-G50

TYA-G100

TYA-G150

TYA-G200

Devices
Technology
Indicators

Traffic

L/H

3000

6000

9000

12000

Working vacuum

MPa

-0.06~-0.099

Working pressure

MPa

≦0.5

Constant temperature control range

20~80

Power

V

380V/50HZ (export equipment according to user needs)

Working noise

dB(A)

≦78

Heating power

KW

30

60

90

120

Total power

KW

35

66

98

135

Inlet and outlet pipe diameters

mm

40

50

60

76

Equipment weight

kg

670

950

1050

1200

Shape
Dimensions

Long

mm

1600

1700

1750

1900

Width

mm

950

1150

1250

1300

High

mm

1500

1700

1950

2000

Oil level

After treatment

Indicators

Water content in oil

ppm

≦100(GB/T7600)

Mechanical impurities

%

None

Demulsification

min

≦15(GB/T7305)

Cleanliness

level

≦13(NAS1638)

※ The overall dimensions and weight of the equipment are for reference only. With the continuous development of the product, the actual object shall prevail



Hotline: 400-0731-973



Working principle of high viscosity lubricating oil vacuum filter

The vacuum oil filter for high viscosity lubricating oil is designed according to the principle of different boiling points of water and oil. It consists of a vacuum heating tank, a fine filter, a condenser, a primary filter, a water tank, a vacuum pump, a drain pump and an electrical cabinet. The vacuum pump draws out the air in the vacuum tank to form a vacuum. Under the action of atmospheric pressure, the external oil enters the primary filter through the inlet pipe and the inlet pipe to remove larger particles, and then enters the heating tank. The oil heated to 40~75 ℃ passes through the automatic oil drift valve, which automatically controls the balance of oil entering the vacuum tank. The heated oil is separated into a semi mist by the rapid rotation of the spray wing, and the water in the oil rapidly evaporates into steam and is continuously sucked into the condenser by the vacuum pump. The water vapor entering the condenser is cooled and then returned to the original water for discharge. The oil in the vacuum heating tank is discharged into the fine filter by the oil drain pump to filter out the particulate impurities through the oil filter paper or filter element, thus completing the whole process of the vacuum oil filter to quickly remove the impurities, water and gas in the oil, so that the clean oil is discharged from the oil outlet
