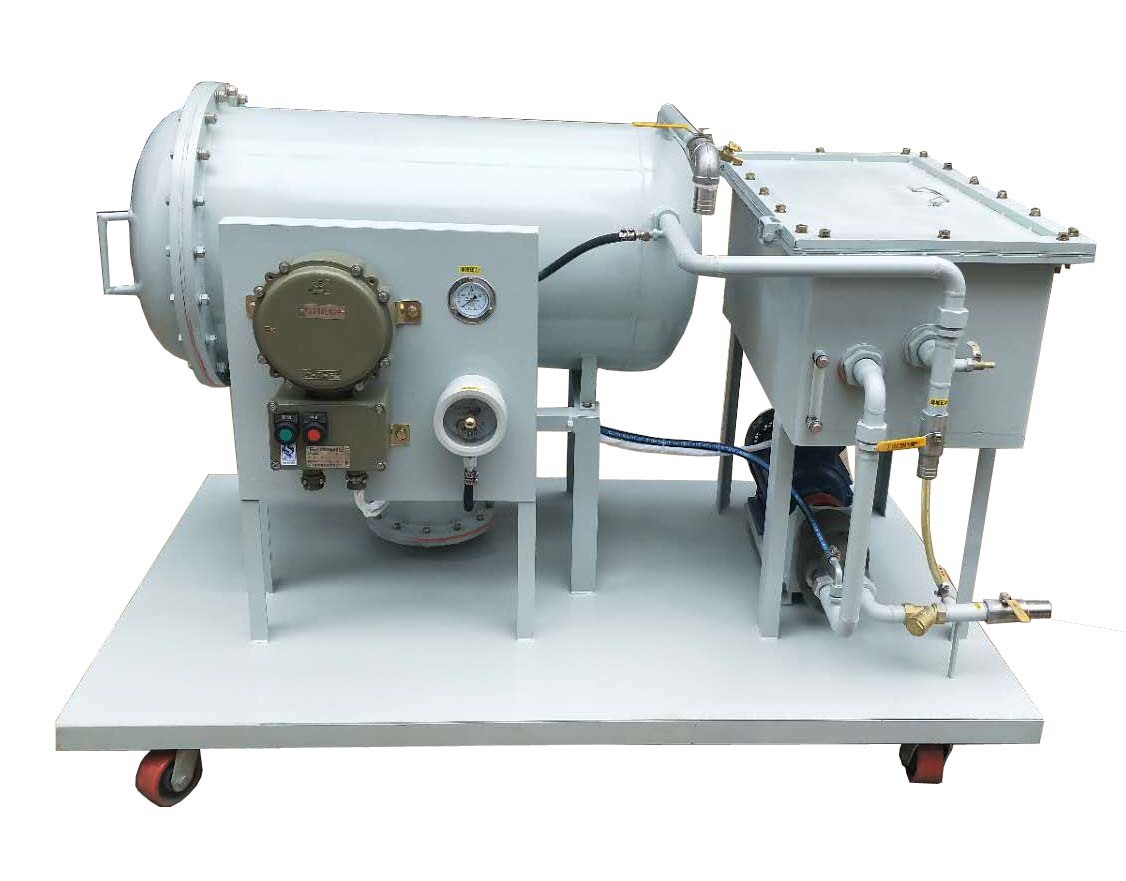

The fuel oil coalescence and separation filter is used to purify light oil such as aviation fuel, gasoline, kerosene, diesel, etc., remove impurities and free water in the oil, improve the quality of oil products, extend the life of nozzle, and improve the efficiency of fuel engine. It is an ideal equipment for oil depots and oil storage stations. The product is mainly composed of coarse filter, semi fine filter, fine filter, coalescence separator, oil pump and oil circuit control system. During the storage, transportation and filling of oil products, large and small breathing is required. Due to the change of outdoor ambient temperature and humidity, and the invasion of rain, snow and fine dust through the breathing valve, the oil products will be polluted. In addition, it is difficult to avoid introducing a large amount of water and impurities into the oil during the various manufacturing, installation, commissioning and production links of pipeline and tank assembly, welding, anti-corrosion, purging and pressure test. Therefore, in order to ensure the safe operation of the equipment using the oil and avoid failure, the water and impurities contained in the oil must be removed

Principle Introduction

This machine is made of coalescence filter element made of professional hydrophilic materials and dehydration filter element made of hydrophobic materials, which are optimized after being configured in a certain proportion. According to the different physical functions of the water in the oil, the free water and emulsified water in the oil are coalesced into water droplets with large diameter after passing through the coalescence filter element, and then a large number of water droplets are separated through the dehydration filter element, and the water droplets are automatically discharged after settling in the water storage tank under the action of gravity, thus completing the oil-water separation. This equipment integrates the functions of automatic demulsification, efficient dehydration, precision filtration, etc., and can effectively filter out the moisture and impurities in the oil

Technical Features

1. The whole machine is specially designed, with beautiful appearance, small power and low operation cost

2. This machine does not need heating and vacuum to achieve the effect of water removal

3. The impurities are filtered by multi-level filtration, and the particle size control effect is excellent. (It can reach NAS5— 8)

4. It is equipped with detection alarm, action control and shutdown protection functions, which can use the equipment to run online and realize unattended

User Optional Configuration

1. The body pipe can be made of stainless steel, which is beautiful and free from corrosion and can work for a long time

2. High quality imported products can be selected for power components, filtering equipment and electrical components to improve the performance of the equipment

3. PLC intelligent control, touch screen operation and dynamic display can be selected according to the needs of users

4. Flow meter with accumulation function

Technical parameters

※ The overall dimensions and weight of the equipment are for reference only. With the continuous development of the product, the real object shall prevail
